Salient Features :-
■ Two gas system.
■ Standard integrated metal ergonomic compact design . facilitates effective & ease in use.
■ Power failure support functions: automatically converts to standby mode during AC power outages.
■ Fully metallic frame with front brake castor wheels Has automatic self-checking function on startup and an automatic self-calibrating sensor.
■ Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable.
■ High precision two-tube flow meter
■ Sigle vapouriser selectatec mounting
■ Autoclavable & easy to use Circle absorber system

Anesthesia Ventilator:
■ Ventilation modes: A/C, IPPV, SIPPV,VCV & PCV, manual, PEEP,SIGH,IRV,IP,standby
■ Tidal volume: adjustable range: 20 - 1500ml,
■ Pressure Control: 3 to 50 cm H2O
■ Pressure Slope: 1 to 10 gears
■ Ventilation frequency: 4 ~ 40 bpm
■ I:E: 1:1.5 ~ 1:3.0
■ Inspiratory trigger pressure: -1 ~ 10 cm H2O
■ Alarms: audio/visual alarms for tidal volume, airway pressure, power failure, oxygen failure.

Monitoring of : Tidal volume, Minute Volume, Respiratory rate , I: E ratio, Peak Pressure, PEEP

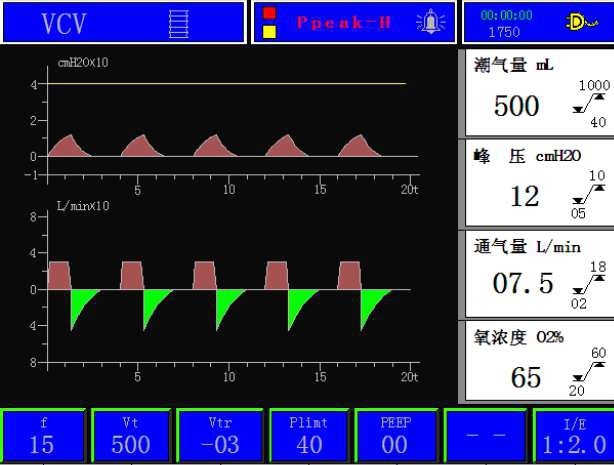

Waveform display : Flow - Time waveform Pressure - Time waveform Pressure - Volume loop Flow - volume loop
Display Size : 10.4” TFT color LCD screen display .

Optional :
1) Vaporizer: (Enflurane /Isoflurane / Sevoflurane / Halothane), with self-compensating function
2) Oxygen concentration monitoring
