Physio Control Lifepak 9
• The Physio-Control LIFEPAK® 9 defibrillator/monitor was designed to meet the needs of clinical, biomedical engineering, and purchasing professionals throughout the world. • This unit’s simple 1-2-3 operation and user-friendly display, plus its compact, portable, space-saving design, revolutionizes in-hospital defibrillation.
| Dimensions | 35.2 cm x 29.7 cm x 31 cm, 13.9” x 11.7” x 12.2” (h x w x d)) |
| Weight | 12.7 kg (28 lbs)Battery Type: sealed lead-acid, 16 Vdc nominal, 3 amp-hour. |
| Capacity | a new, fully charged battery will provide one of the following prior to shut down: 75 360J discharges and 90 minutes of monitoring. |
| Low battery indicator | advises operator to connect AC power. Charge time: 24 hours to full capacity |
| Charge time | 24 hours to full capacity |
| Defibrillator | Waveform: 5 msec monophasic pulse. |
| Energy Select | external paddles –1, 2, 3, 4, 5, 6, 7, 8, 9, 10,20, 30, 50 Joules. |
| Charging indicators | flashing lamps on paddle and front panel pushbutton along with increasing stored energy display indicate charge in process. Upon full charge, energy available is displayed on monitor and charge completed tone sounds. |
| Charge time | charge to 360 Joules in less than 10 seconds with a fully charged Battery |
| ECG Monitor | Lead selection: std, paddles, I, II, III. Input: Isolated ECG via Quik- Look® defibrillator paddles, Fast-Patch® disposable defibrillator/ECG electrodes or 3-lead patient cable. |
| Monitor display size | 102mm (4”) wide x 76mm (3”) tall, non fade. |
| Heart rate meter | 3 digit readout displays rates from 20 to 300 bpm. Heart rates outside this range do not yield valid systole tones or heart rate display. |
| Heart rate alarms | user-selectable alarm limits. Three high/low settings (150/140, 120/60, 160/90). Other limit options available via SET UP menu. |

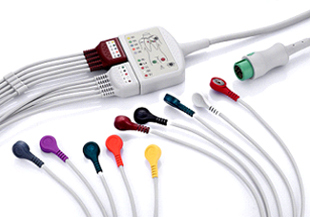

ECG

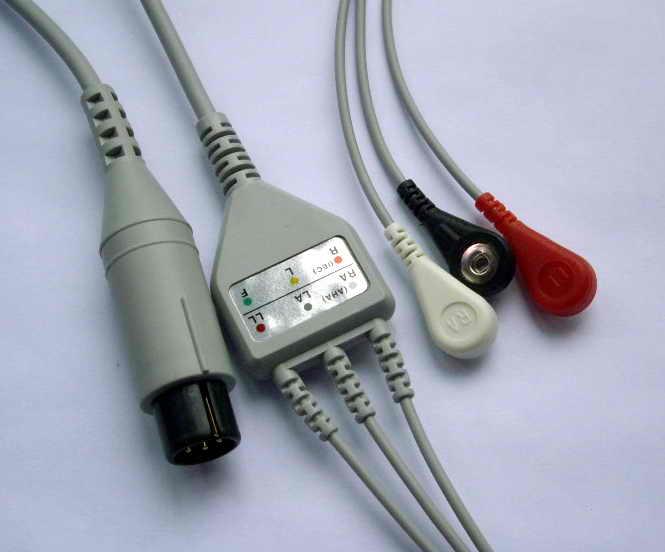

3 Lead ECG Cable

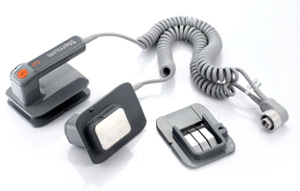

Defibrillator
